CF-T15PRO

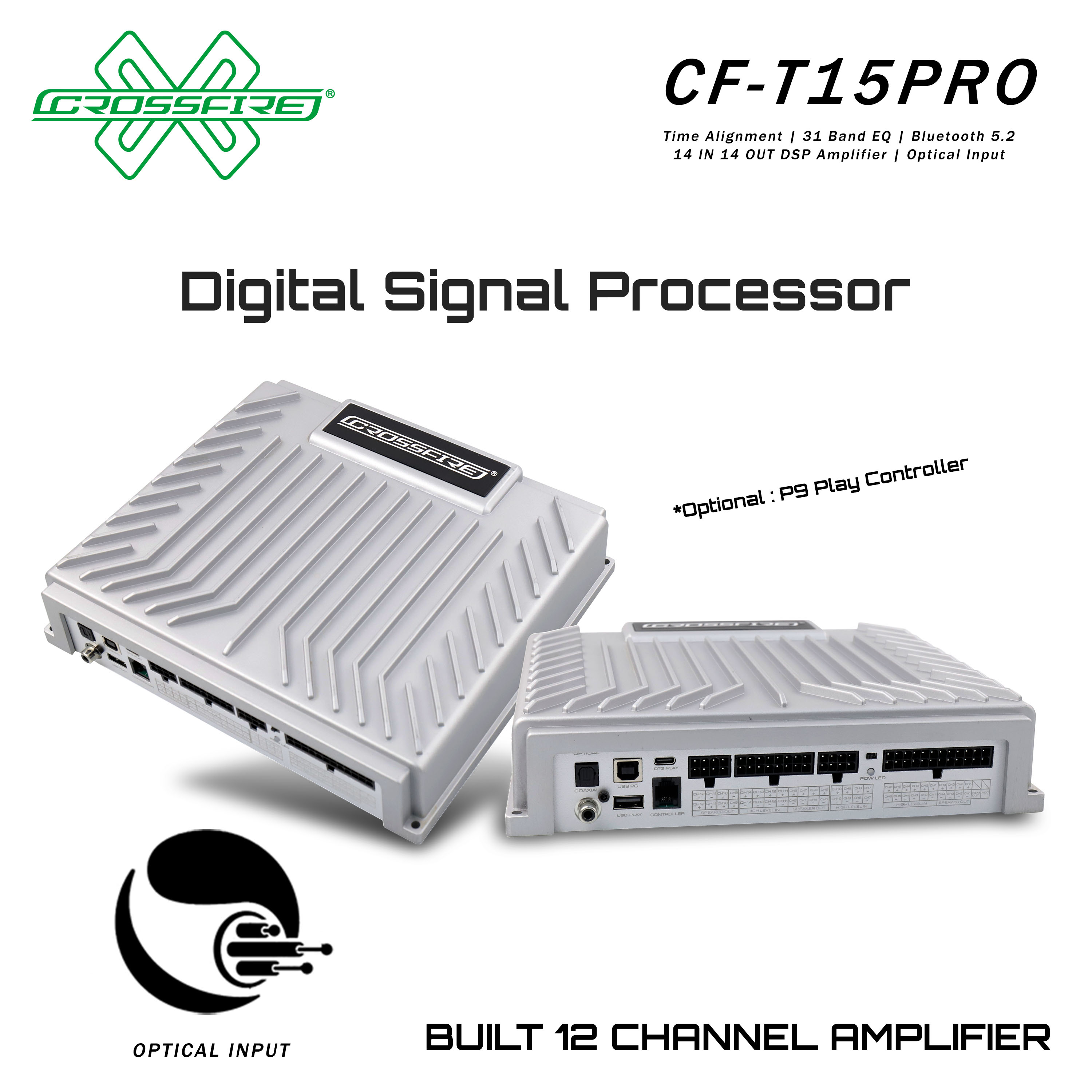

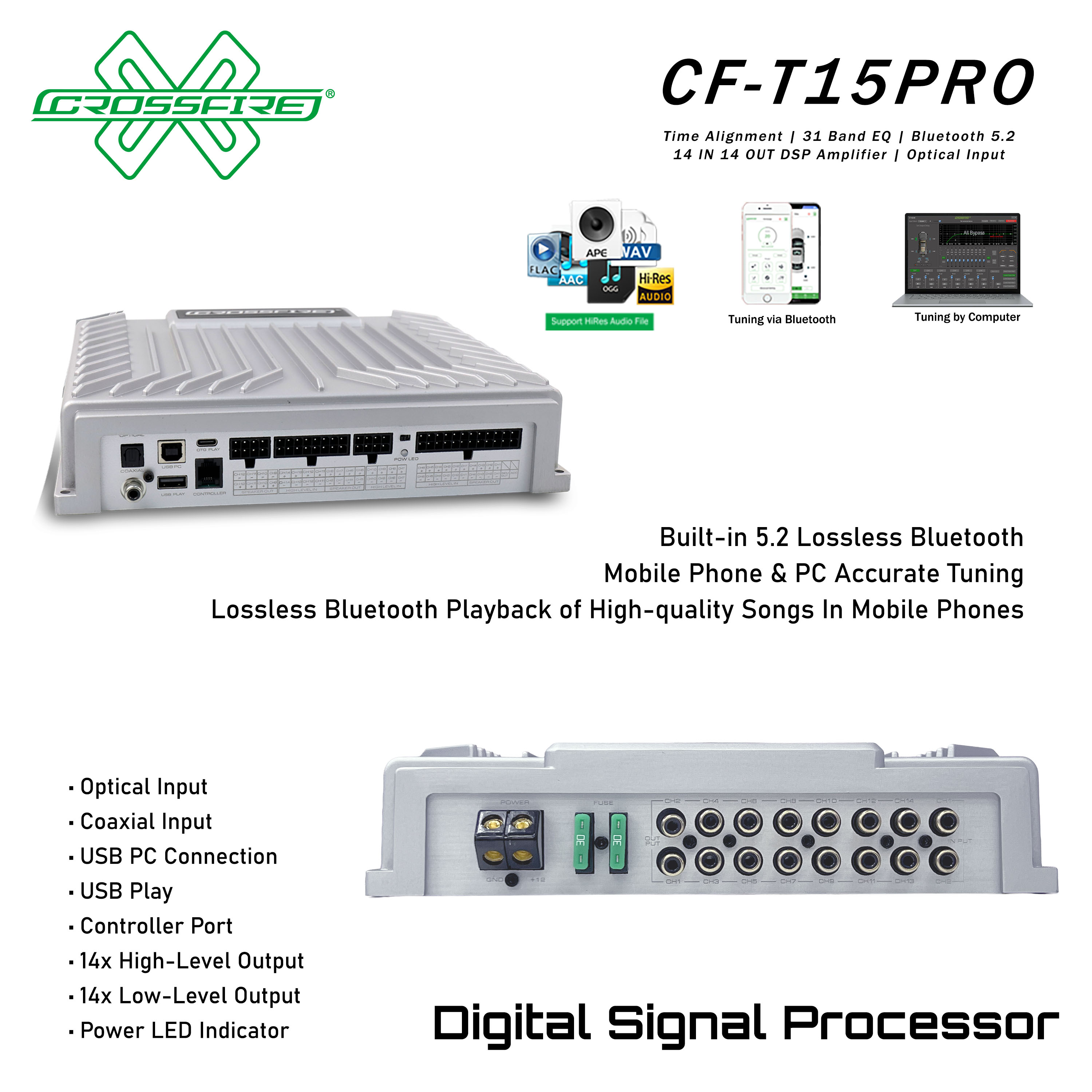

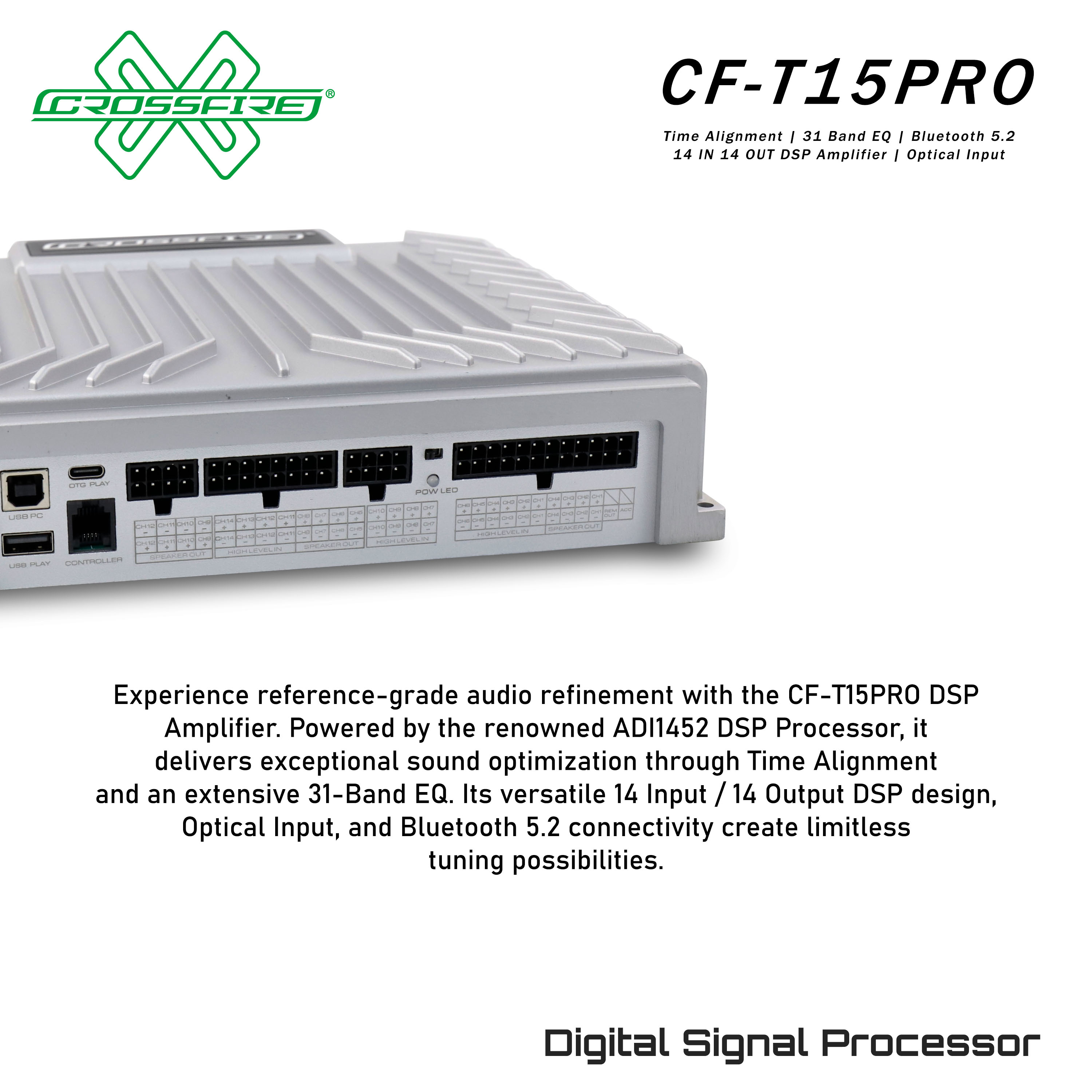

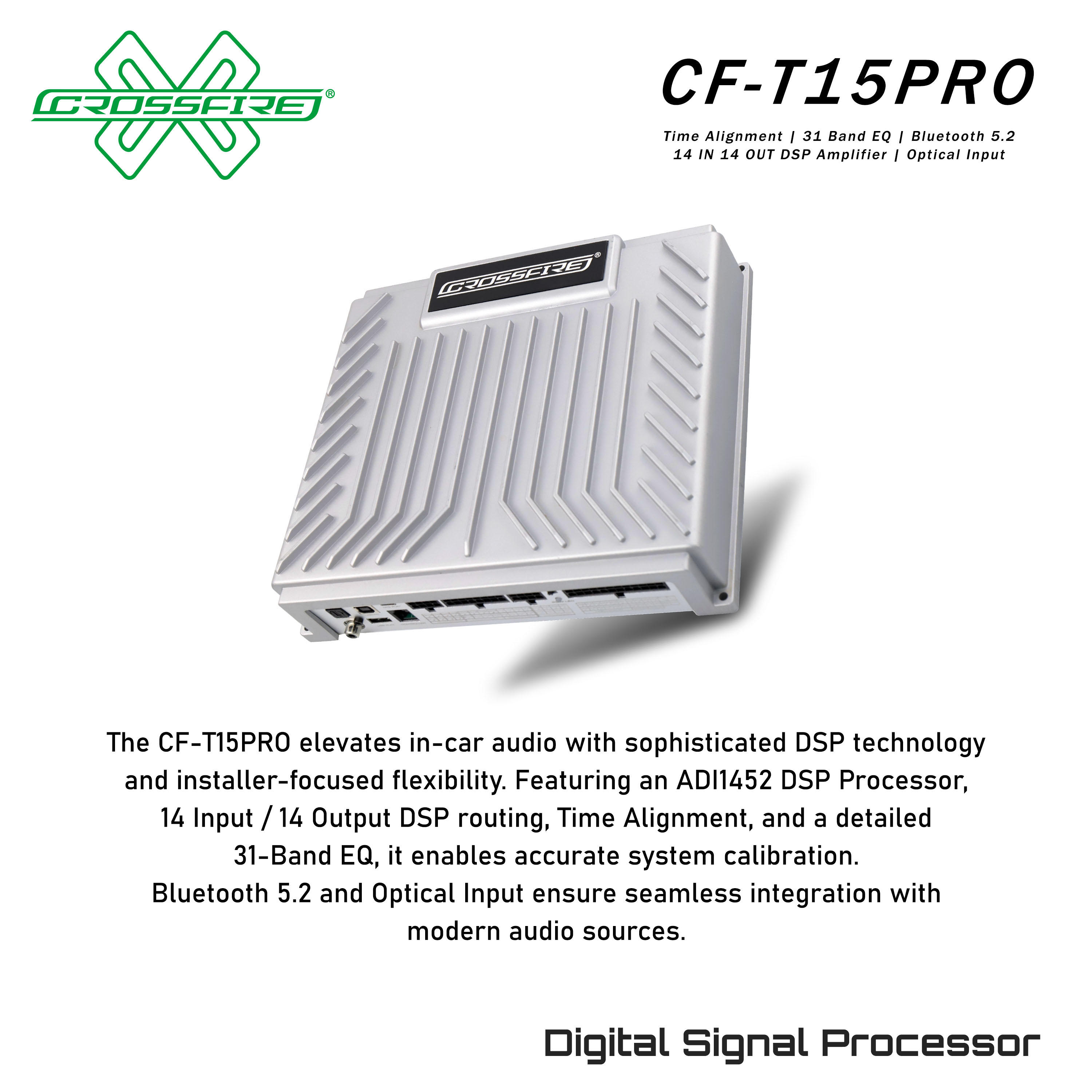

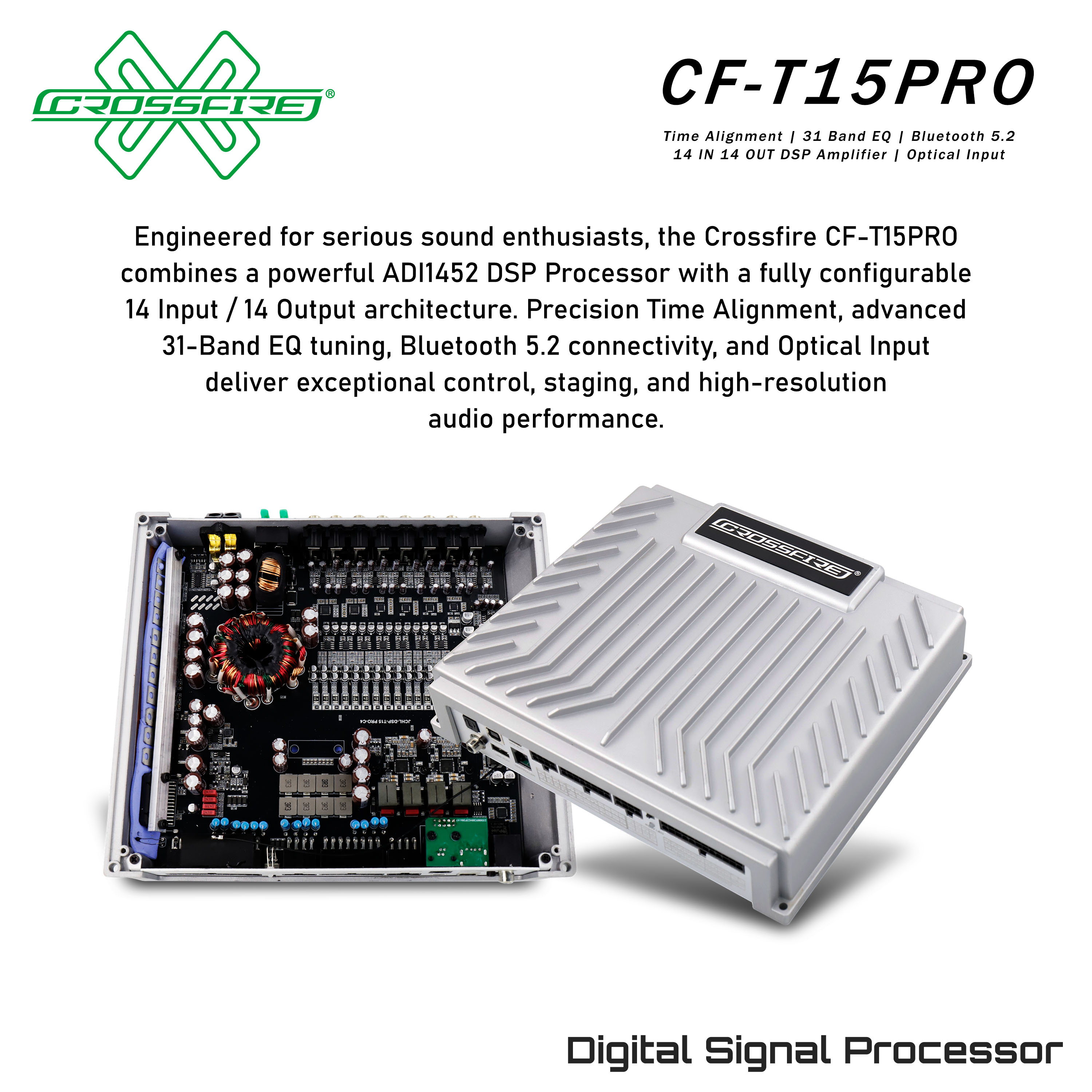

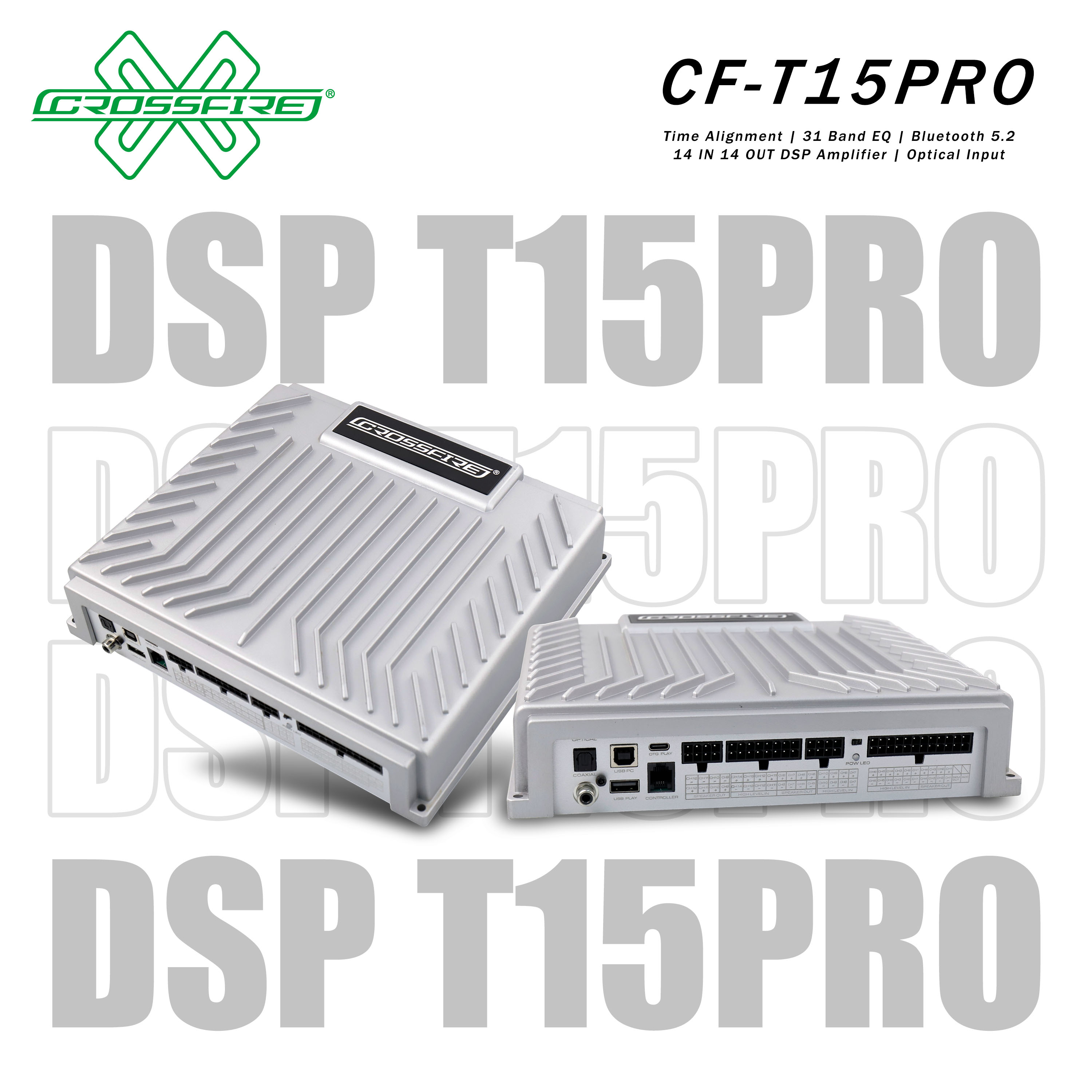

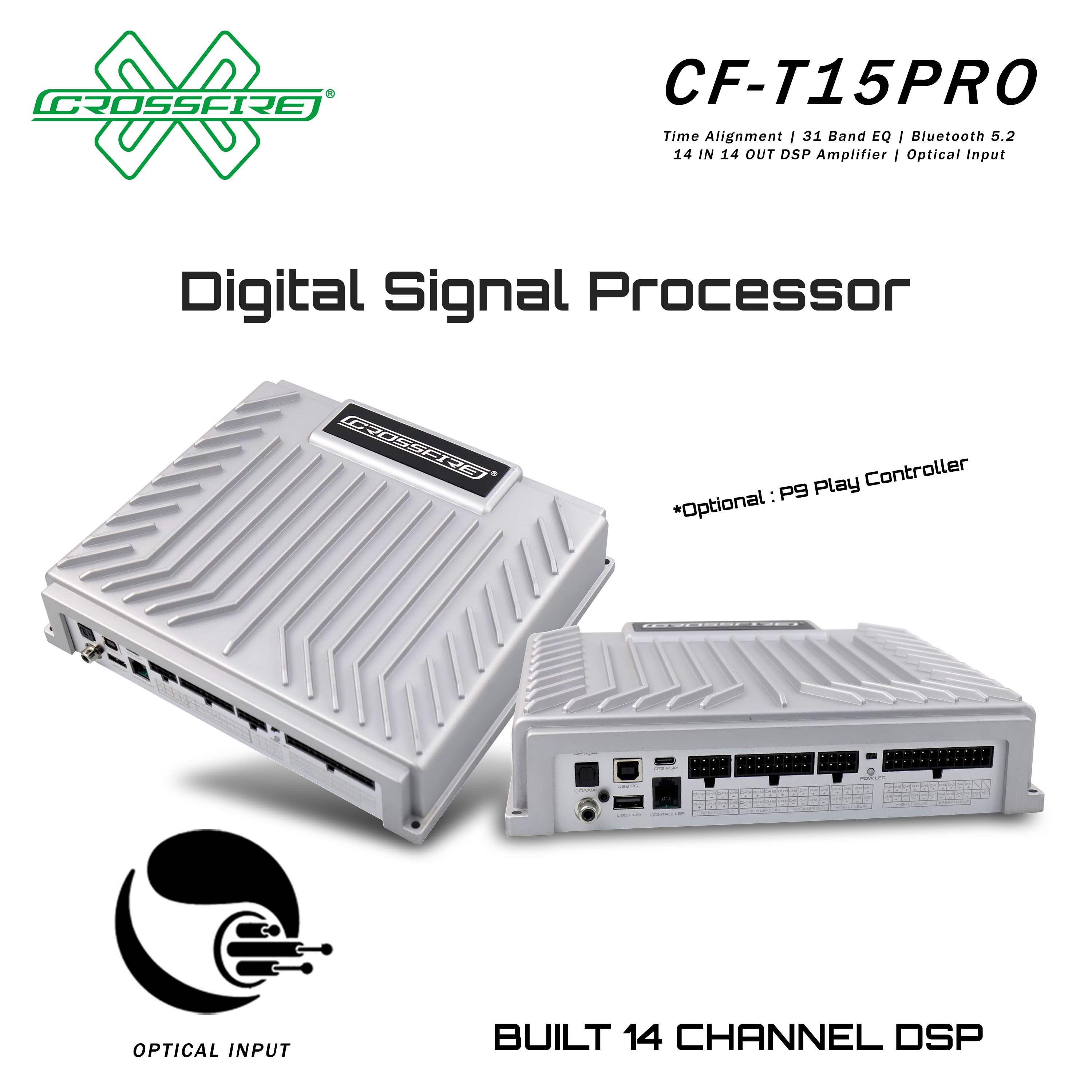

CF-T15PRO (Digital Sound Processor)

31 Band EQ

14 Channel High Input

12 Channel High Output

2 Channel Low Input

14 Channel Low Output

Max 2.6V Low Output Voltage

Optical / USB / Bluetooth 5.2 Input

ADI1452 Processor

Class AB / Class D Amplifier

85W x 4 Channel 1-4 Class AB

100W x 4 Channel 5-8 Class AB

200W × 4 Channel 9–12 Class D

2–4 Ohm Impedance

Frequency Response: 20Hz–22kHz

Sensitivity: 92dB

Sampling Rate: 96kHz / 24Bit

Power Voltage: DC 9V–16V

Static Current: <3mA
